제품 상세 정보:
|
| condition: | New | Applicable Material: | Stainless Steel, Metal, Aluminum, Carbon Steel |
|---|---|---|---|
| Laser Type: | Fiber Laser | Output Power: | 1500W - 6000W |
| usage: | Metal Welding | Welding Mode: | Continuous |
| Welding Speed: | 5-10mm/s | Wavelength: | 1070nm |
| dimensions: | 1140*1015*1690MM | warranty: | 2 years |
| laser head brand: | Raytools HZG optional | weight (kg): | 420 |
| key selling points: | Automatic | Product name: | Teapot Spout Laser Welding Machine |
| Laser power: | 1500W- 6000W | Welding material: | Metal Stainless Steel Aluminum |
| Laser wavelength: | 1070nm | Voltage: | 380V/220V, 50/60Hz |
| Cooling System: | Water Cooling | Positioning accuracy: | Red light position |
| Repeating Precision: | ±0.01mm | Pulse Width: | 0.5-15 ms |
| 강조하다: | 1500W Automatic Laser Welding Machine,Teapot Spout Automatic Laser Welding Machine,4 Axis Automatic Laser Welding Machine |
||

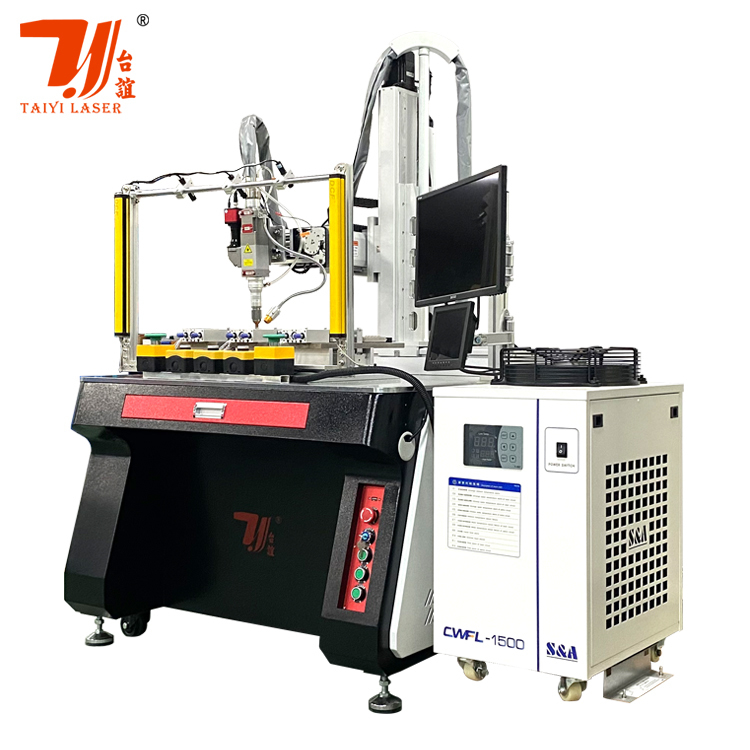

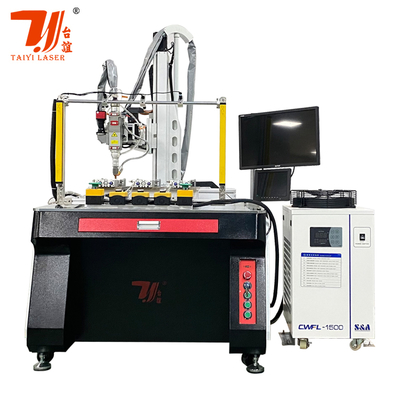

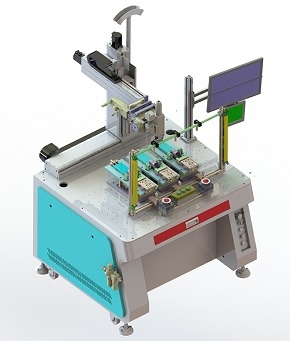

| Product Name | Teapot Spout Automatic Laser Welding Machine | |||||
| Laser Power | 1500W-6000W optional | |||||
| Laser Source | Raycus Max IPG JPT optioal | |||||
| Welding Head | HZG Raytool optional | |||||
| Laser Wavelength | 1070nm | |||||
| Pulse Width | 0.5-15ms | |||||
| Pulse Frequency | ≤100Hz | |||||
| Spot adjusting range | 0.1-3mm | |||||
| Repeating precision | ±0.01mm | |||||
| Cooling System | Water Cooling | |||||
| Voltage | 380V/3-Phase/50Hz/40A/60A | |||||
