제품 상세 정보:
|
| condition: | New | Applicable Material: | Stainless Steel, Metal, Aluminum, Carbon Steel |
|---|---|---|---|
| Laser Type: | Fiber Laser | Output Power: | 1500W - 6000W |
| usage: | Metal Welding | Welding Mode: | Continuous |
| Welding Speed: | 10-30mm/s | pulse width: | 0.5-15 ms |
| Wavelength: | 1070nm | dimensions: | 1010*890*1767MM |
| warranty: | 2 years | laser head brand: | Raytools HZG optional |
| guiderail brand: | HIWIN | control system brand: | Raytools |
| weight (kg): | 420 | key selling points: | Automatic |
| Product name: | Product name | Laser power setting: | 1500W- 6000W |
| Welding materials: | Metal Stainless Steel Aluminum | Laser wavelength: | 1070nm |
| Voltage: | 380V/220V, 50/60Hz | Cooling System: | Water Cooling |
| Positioning accuracy: | Red light position | Repeating Precision: | ±0.01mm |
| 강조하다: | Custom Stainless Steel Welding Machine,Automatic Fiber Laser Welding Machine,5 Axis Fiber Laser Welding Machine |
||

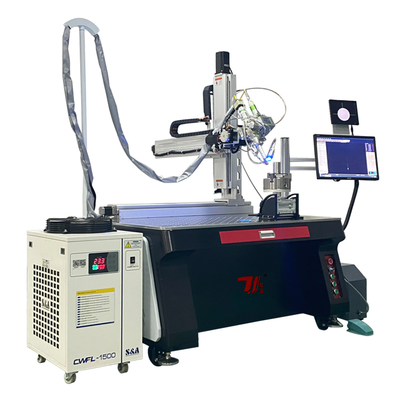

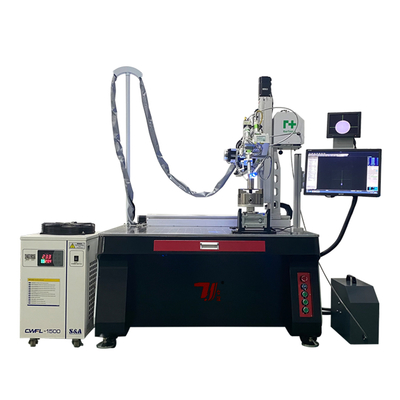

| Product Name | Automatic Laser Welding Machine | |||||
| Laser Power | 1500W-6000W optional | |||||
| Laser Source | Raycus Max IPG JPT optioal | |||||
| Welding Head | HZG Raytool optional | |||||
| Laser Wavelength | 1070nm | |||||
| Pulse Width | 0.5-15ms | |||||
| Pulse Frequency | ≤100Hz | |||||
| Spot adjusting range | 0.1-3mm | |||||
| Repeating precision | ±0.01mm | |||||
| Cooling System | Water Cooling | |||||
| Voltage | 220V/380V/3-Phase/50Hz/60Hz | |||||
